ML-ZD-104

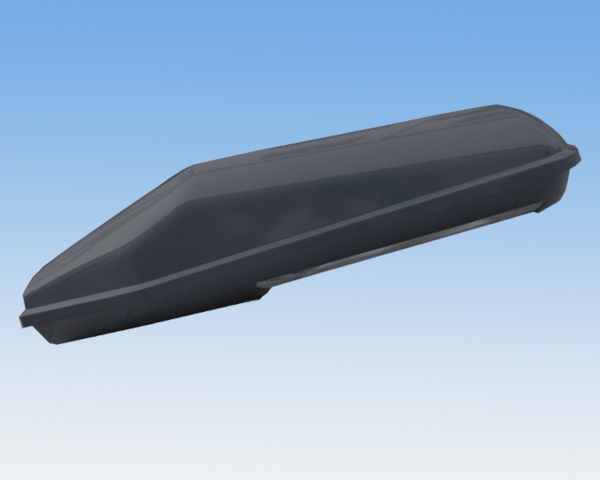

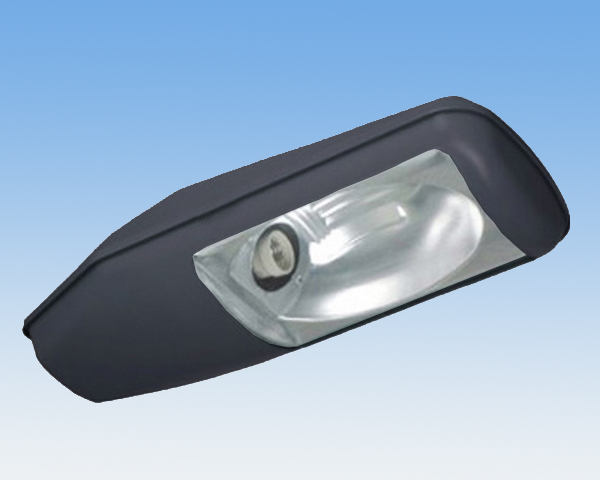

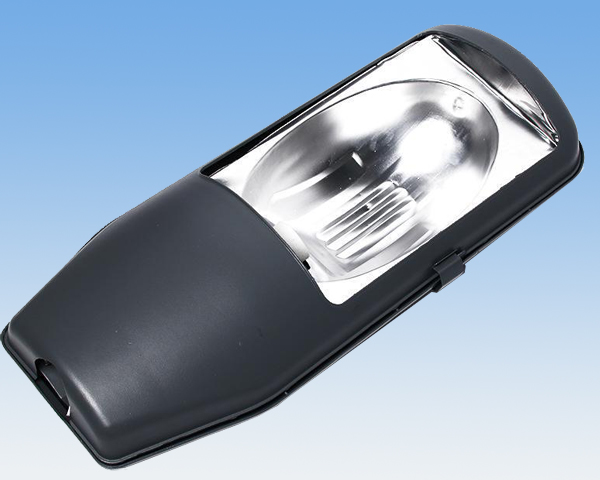

1. die casting aluminum housing, with high intensity, concise structure and streamline outline

2. Hi-purity aluminum reflector, polished and anodized

3. with the characteristic of good transparency, high temperature resistant and uniform light

4. Lens and shell connected with stainless steel hardware, easy to install and maintain

5. Sealed with foamed silicon rubber, with excellent waterproof and dustproof performance

Technical Parameters

1. IP rating:

Control gear compartment:IP65

Optical compartment: IP65

2. Level of corrosionproof: Ⅱ

3. Working environment: -35℃ ~+45℃

4. Electric shockproof rating: I

5. Lampholder: E27 E40

6. Voltage: 220V 50Hz

7. Illuminant: 250W-400W HPS LAMP

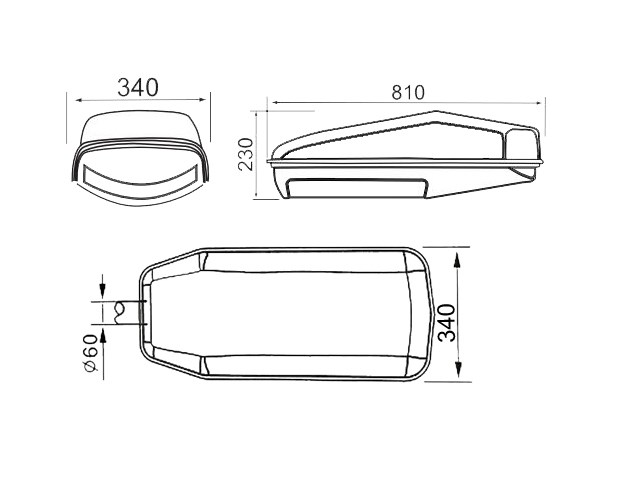

8.Product Size:L810XW330XH210mm

9.CTN Dimension:82*34*22.5cm 1pcs/ctn

10.N.W./G.W.:3.6kg/pcs 4.4kg/ctn

If you have any enquiry about quotation or cooperation,please feel free to email us at kevin@t-lighting.com or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.

• ML-ZD-85B

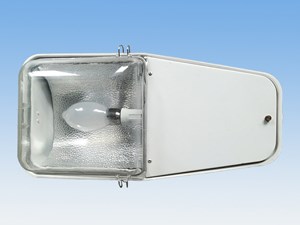

• ML-ZD-98B
